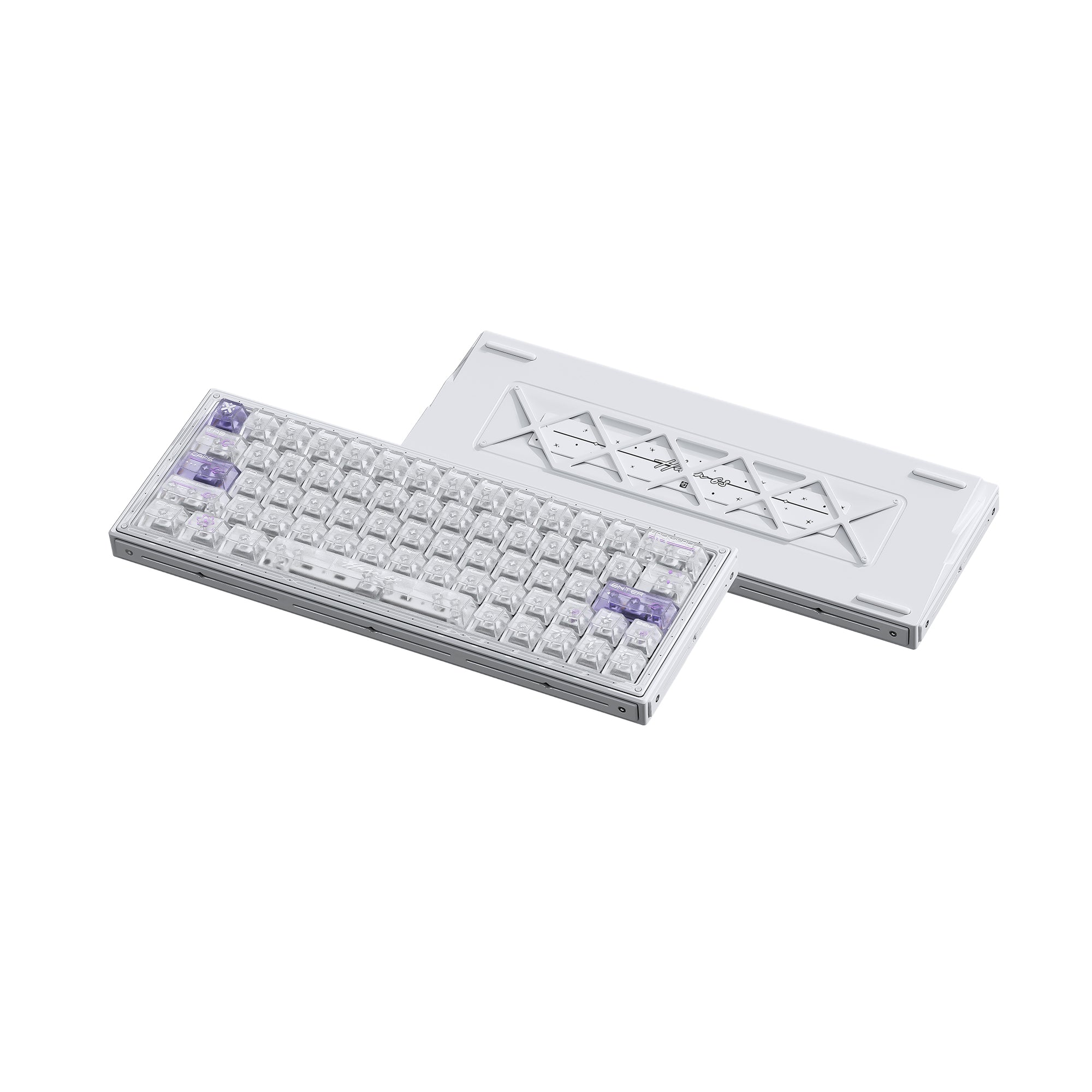

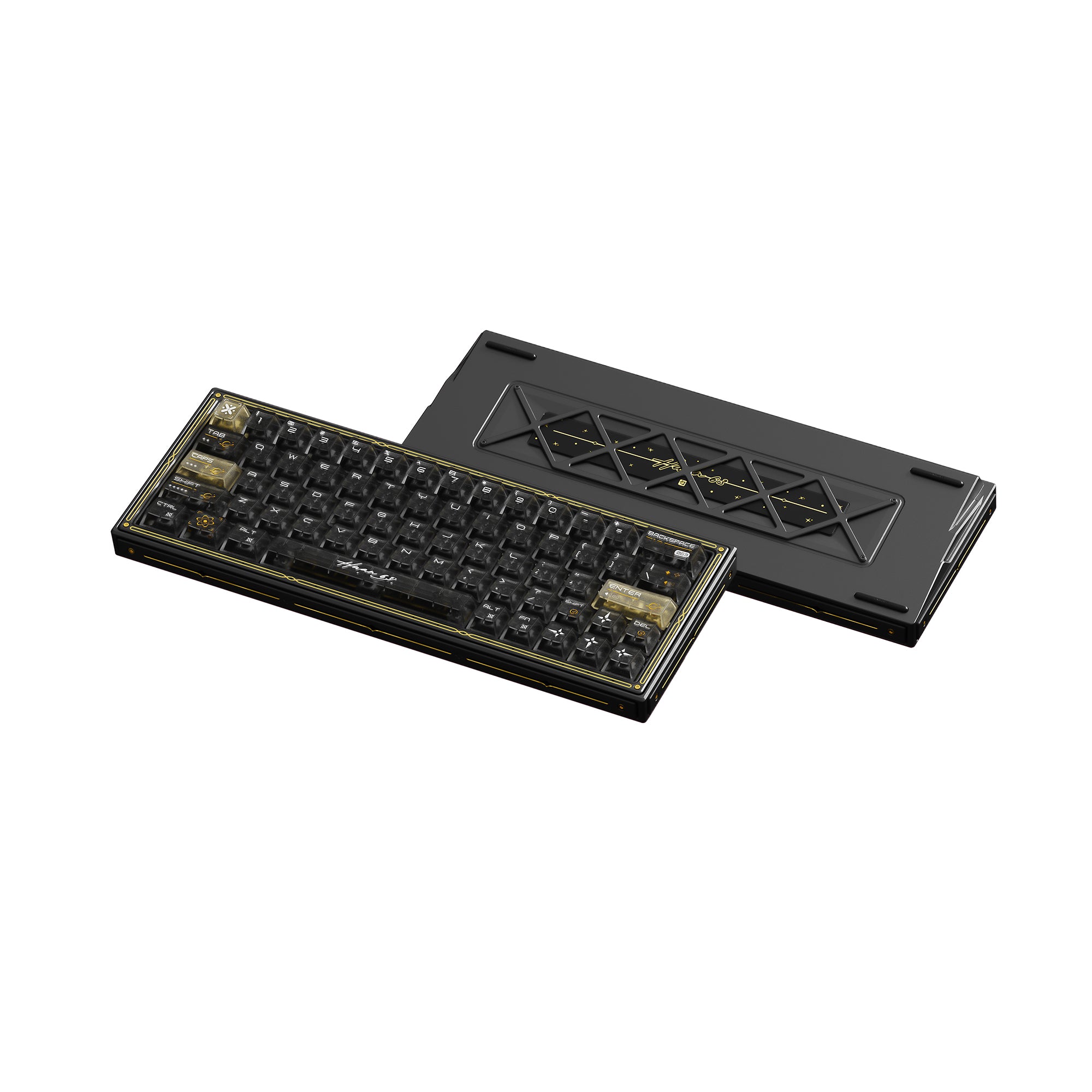

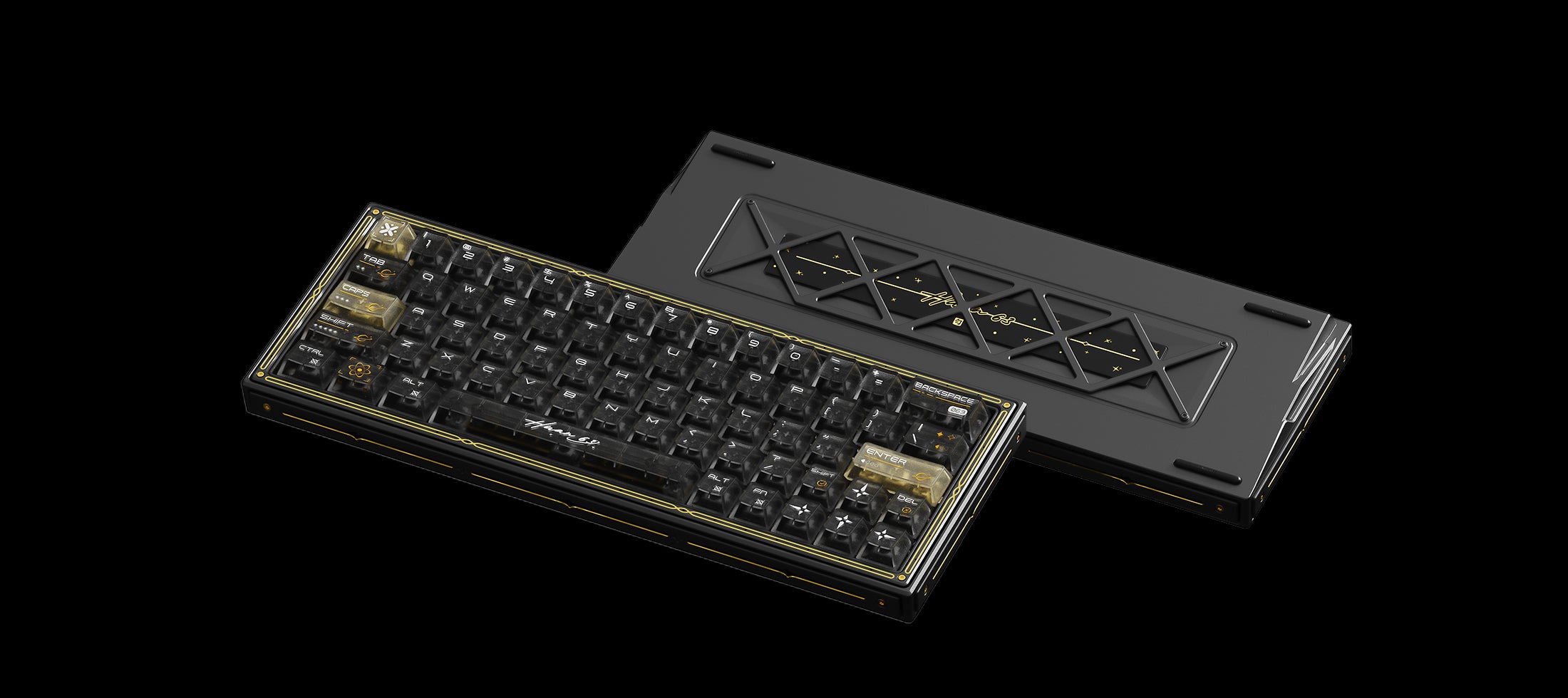

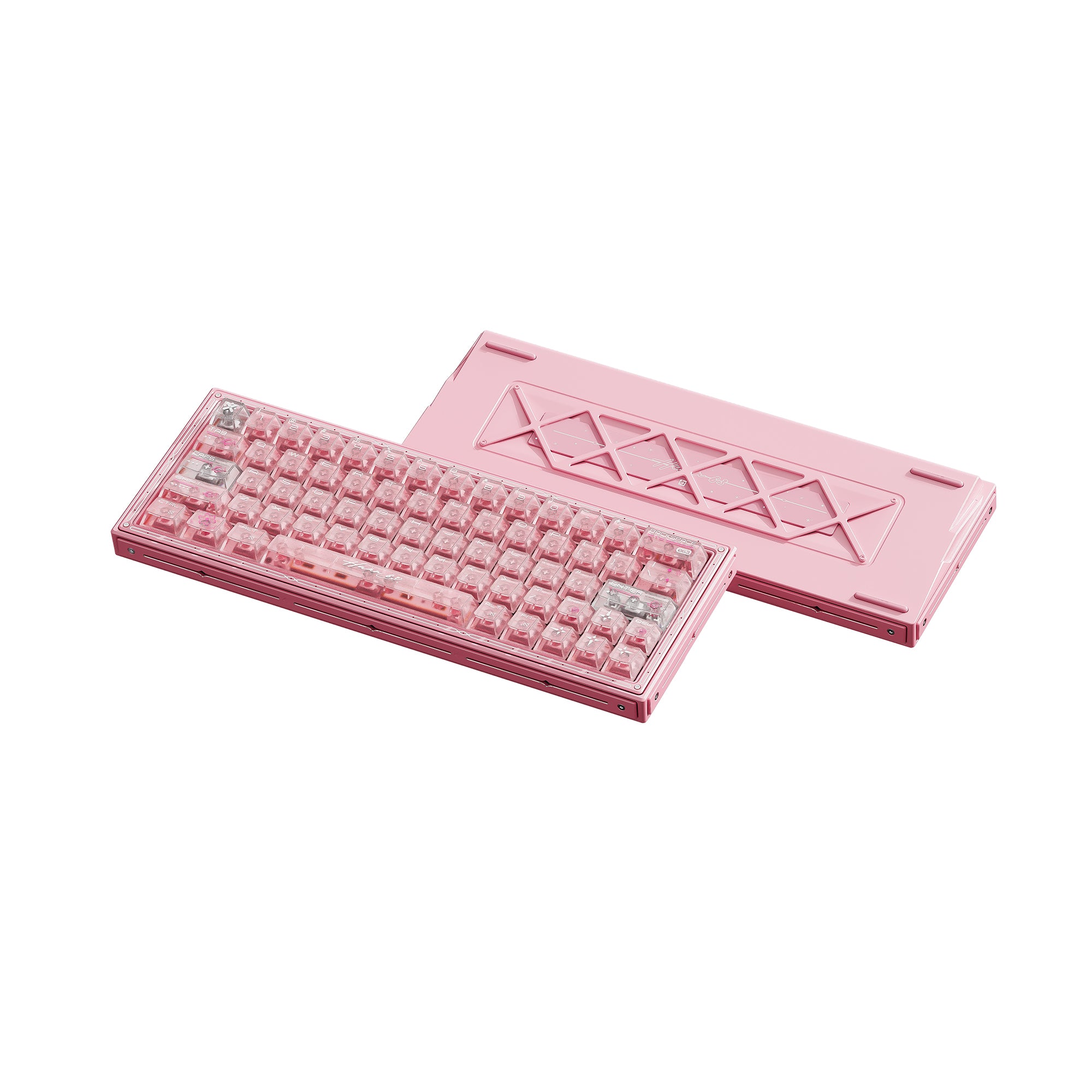

HUAN63 HE Magnesium Alloys Keyboard
DIMENSIONS
- length: 12.17 in / 309 mm
- width: 4.69in / 119 mm
- height: 1.58in / 40 mm
- weight: ≈885g(1.95 lbs)
SPECIFICATIONS
- Layout: 60 percent (64 keys)
- Material: Stainless magnesium alloy (MagLux)
- Keycaps: Frosted transparent PC
- PCB Plate: FR4 ENIG mounting plate
- Mounting Structure: Gasket-mounted

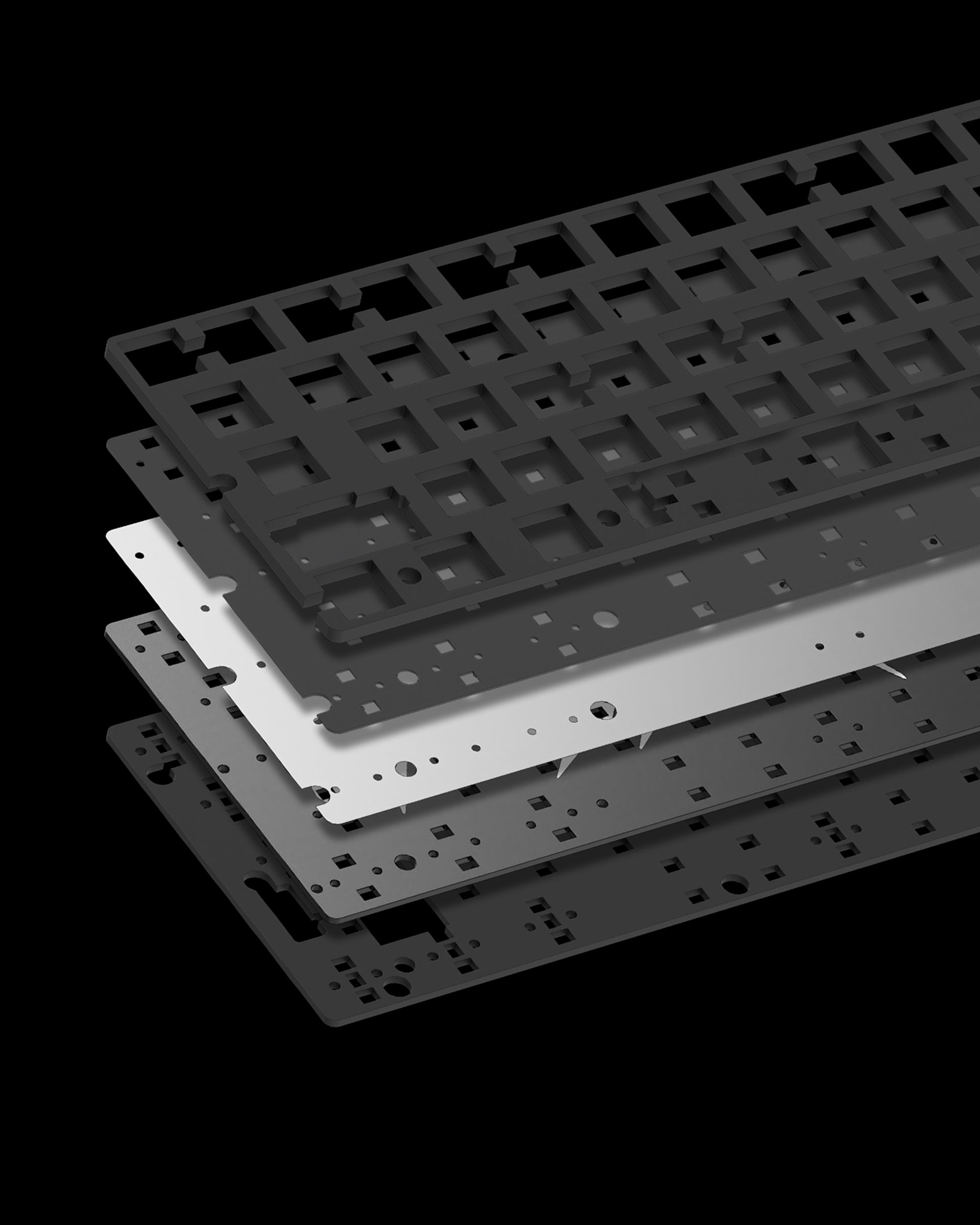

- Damping: PORON core foam, IXPE switch pad+PET film+PORON damping foam+silicone base pad
- Hot Swappable HE Switches: WLMOUSE X Gateron Starlight
- Lighting: Full RGB with dual lighting zones
- RT Precision: Up to 0.001 mm
- Scan Rate: Full-key 256K
- Polling Rate: 125 to 8000 Hz customizable
- Initial Force: 33±5gf
- Total Travel: 3.5±0.1mm
- Bottom out force:47±10gf
- Initial Magnetic Flux: 120±8GS (PCB1.2mm)
- Bottom-out Magnetic Flux: 700±30GS (PCB1.2mm)
- Pre-Lubed: Yes
- Typing Style: Linear
- Lifetime: 150 million+ cycles
MATERIALS
Bottom Case: Stainless magnesium
Keycaps:PC transparent

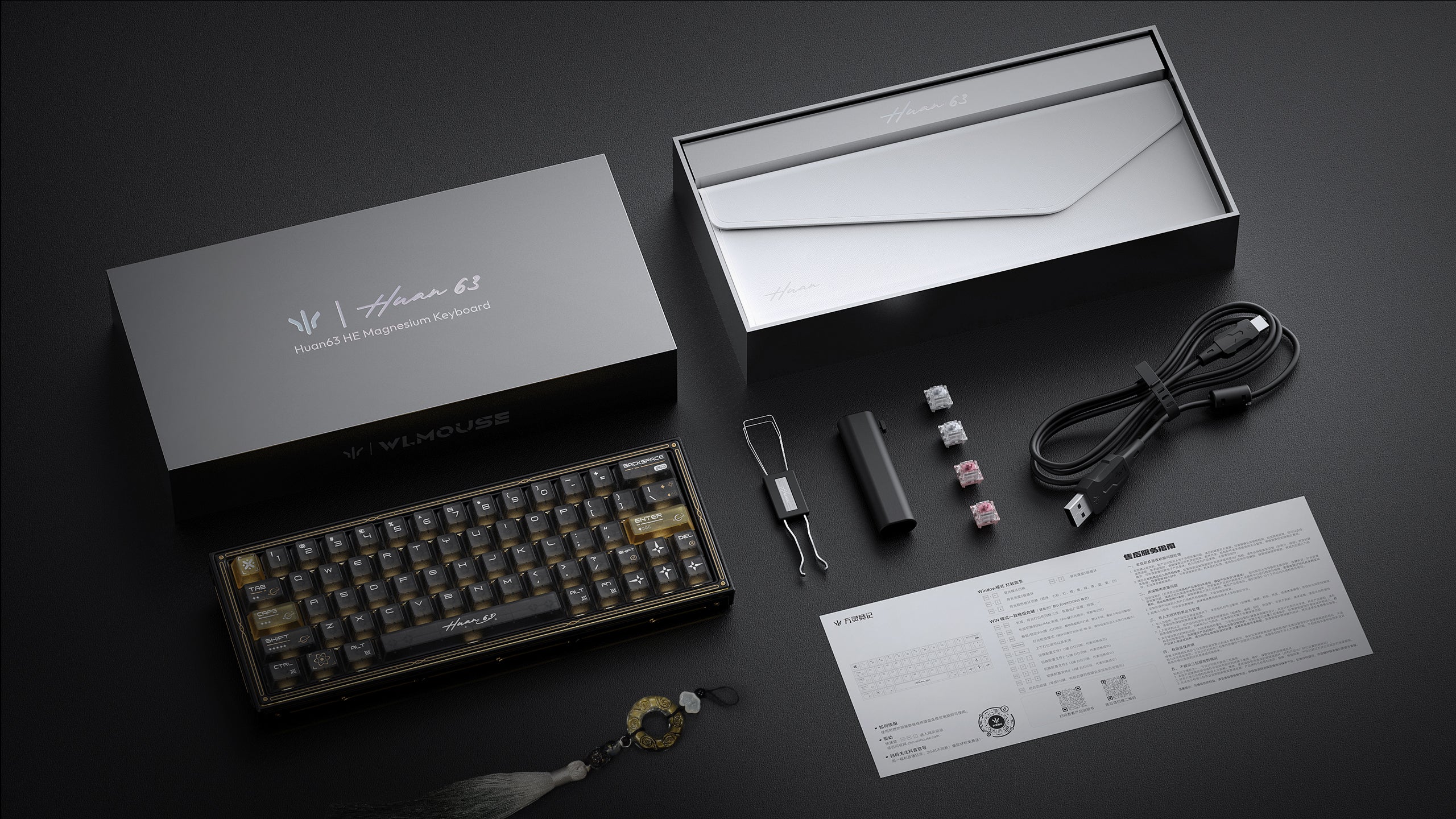

IN THE BOX
- Keyboard * 1
- Carrying case * 1
- Type-C Cable * 1
- Cleaning Brush * 1
- User Manual * 1
- Switch Puller * 1
- Extra Switches *4
In stock! Ships within 1-2 business days.
1-Year Warranty
HUAN63 HE Magnesium Alloys Keyboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Light.
Sound.
Soul.

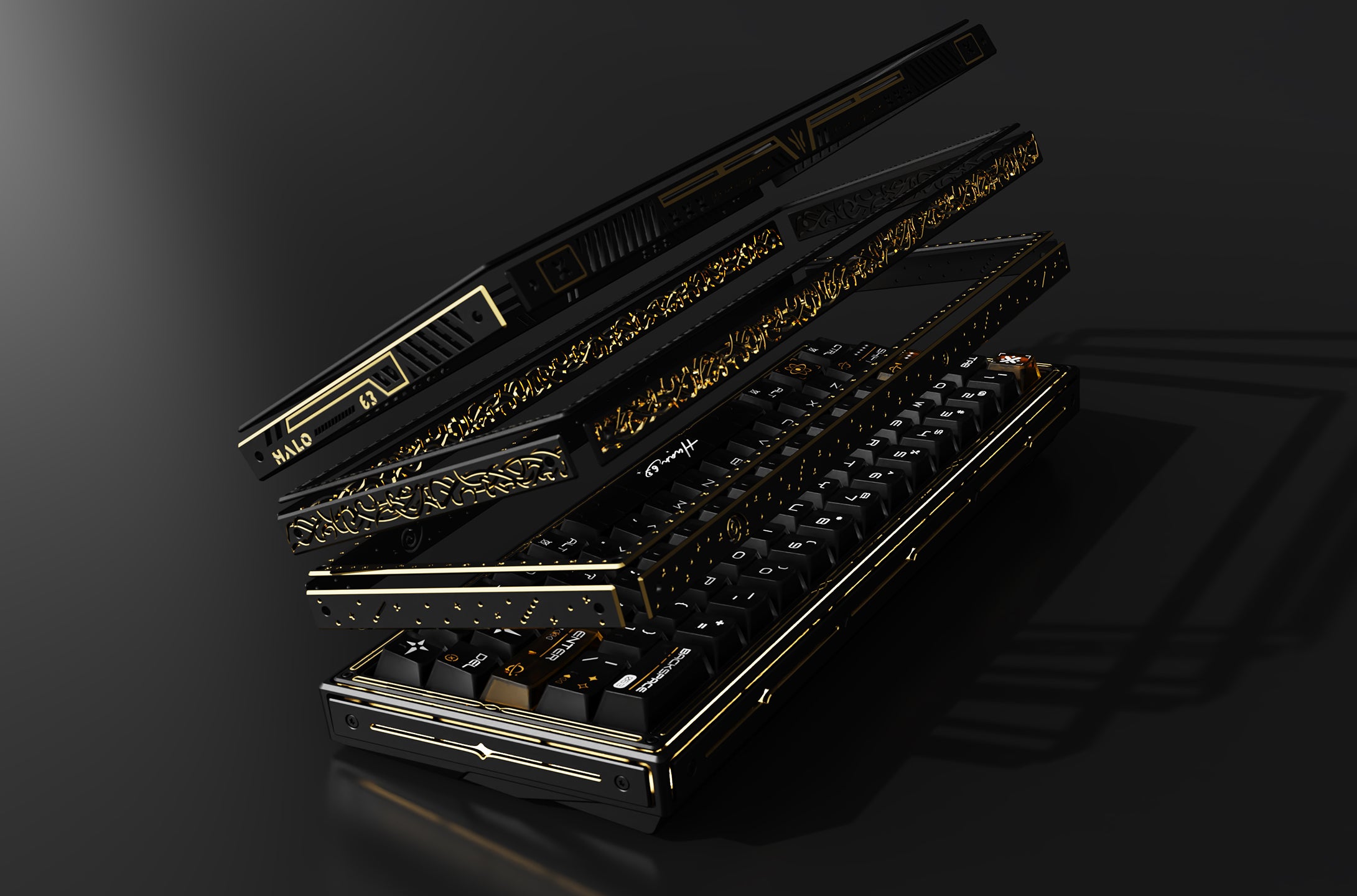

Where Innovation Meets Aesthetics
HUAN redefines what a premium keyboard can be — forged from Stainless Magnesium Alloy (MagLux™), surrounded by 360° RGB light, and tuned with a HiFi-grade acoustic system.

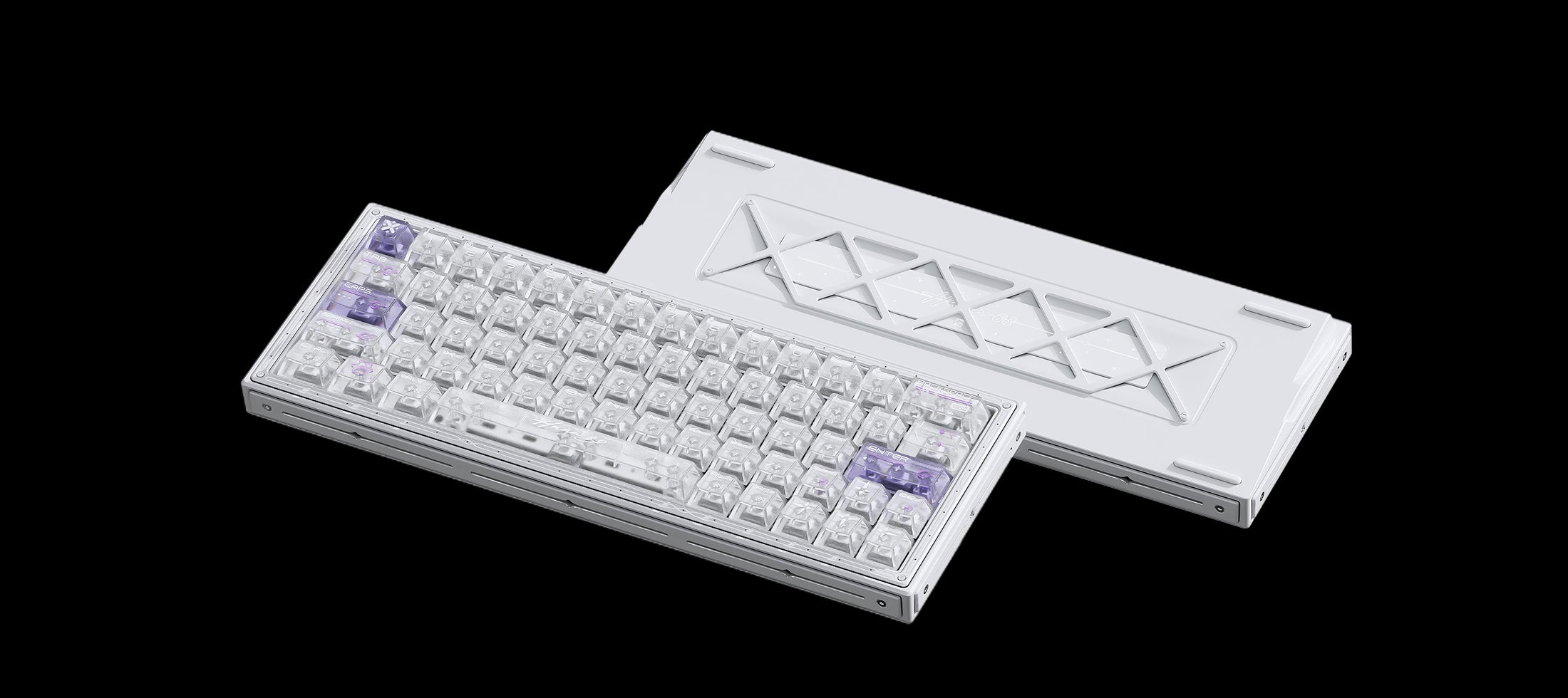

One keyboard. Infinite looks.

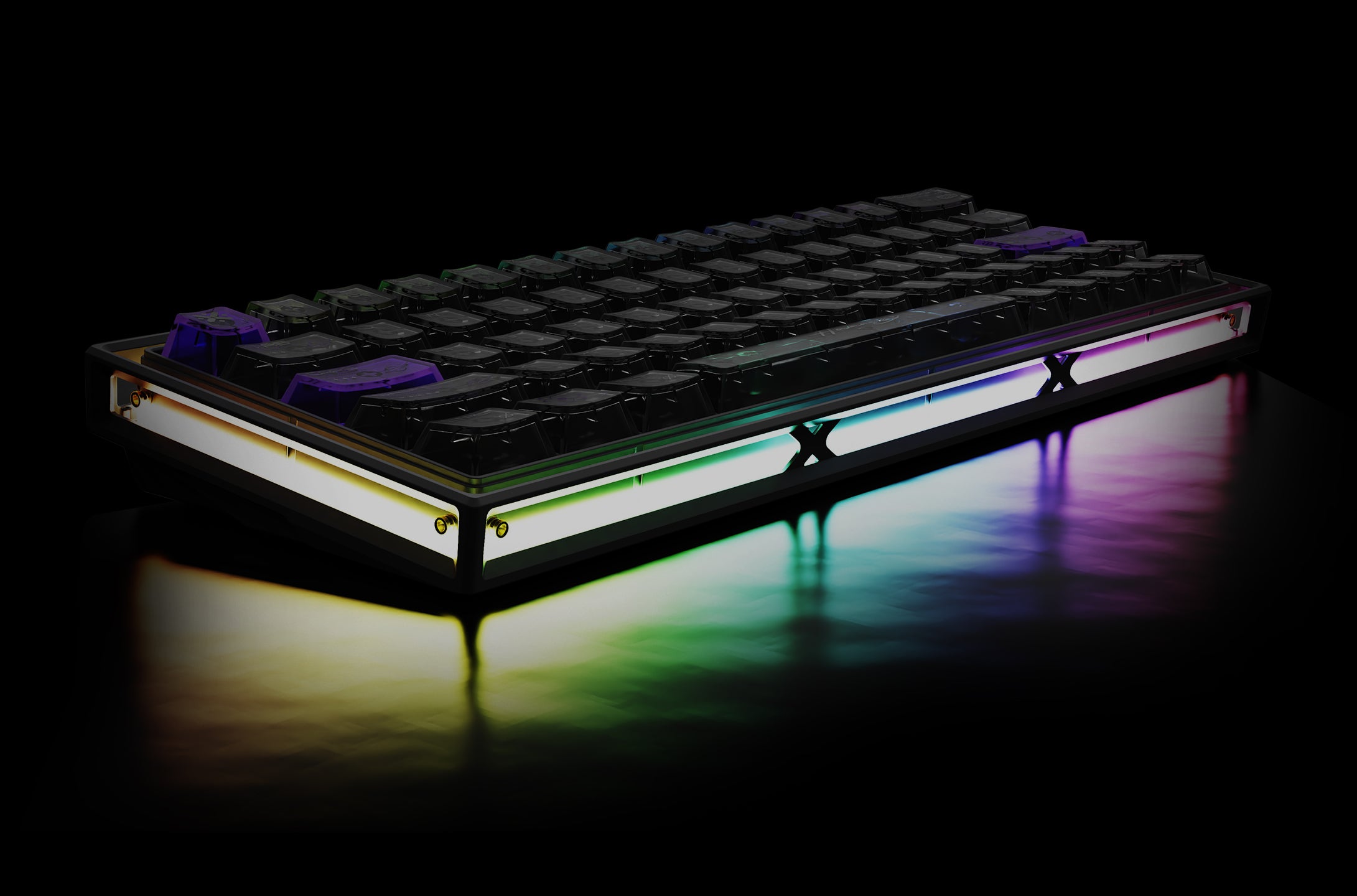

360° RGB Light Field — Surround Illumination
Encased in a fully open 360° RGB light ring, HUAN brings your setup to life with 16.8 million colors of fluid, synchronized lighting.

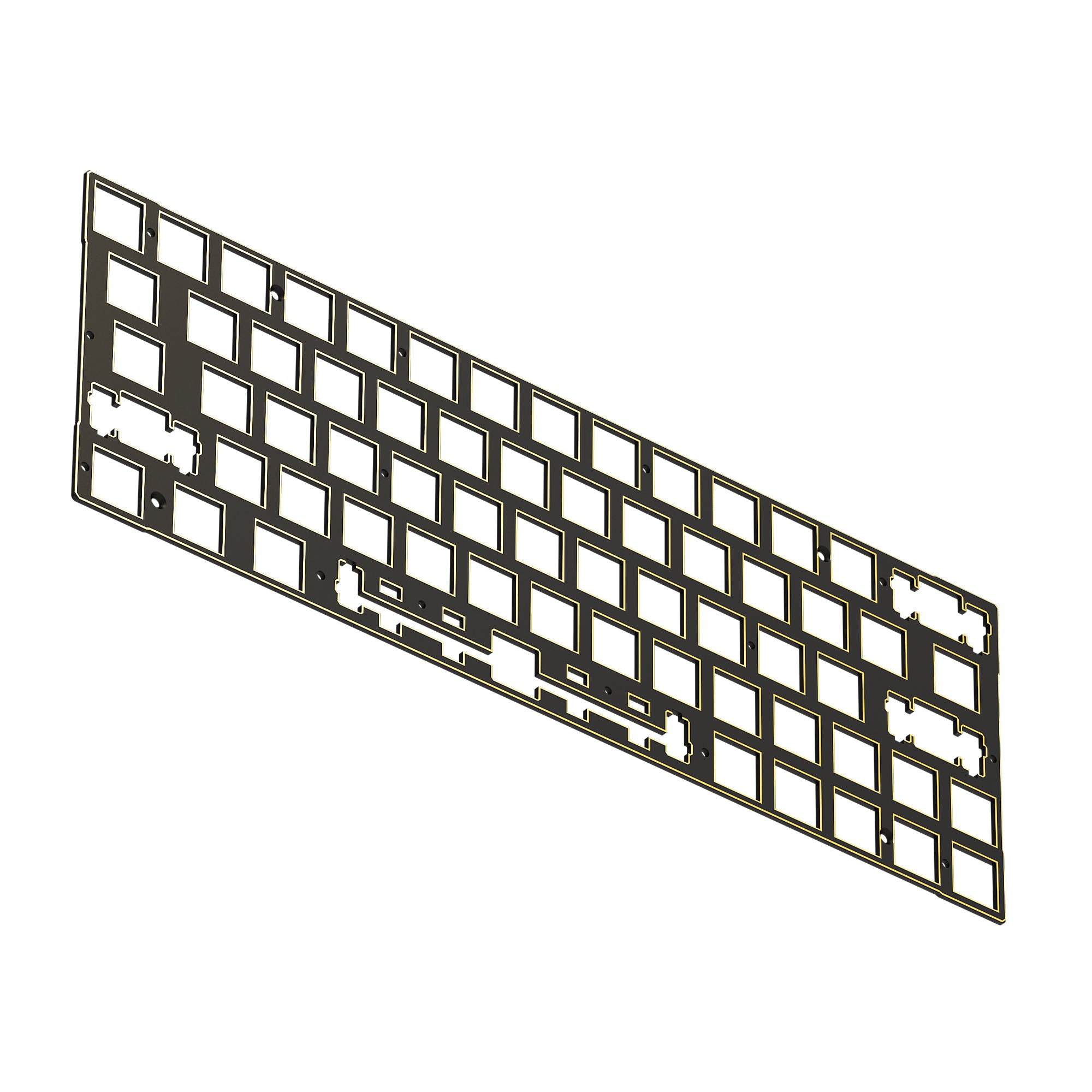

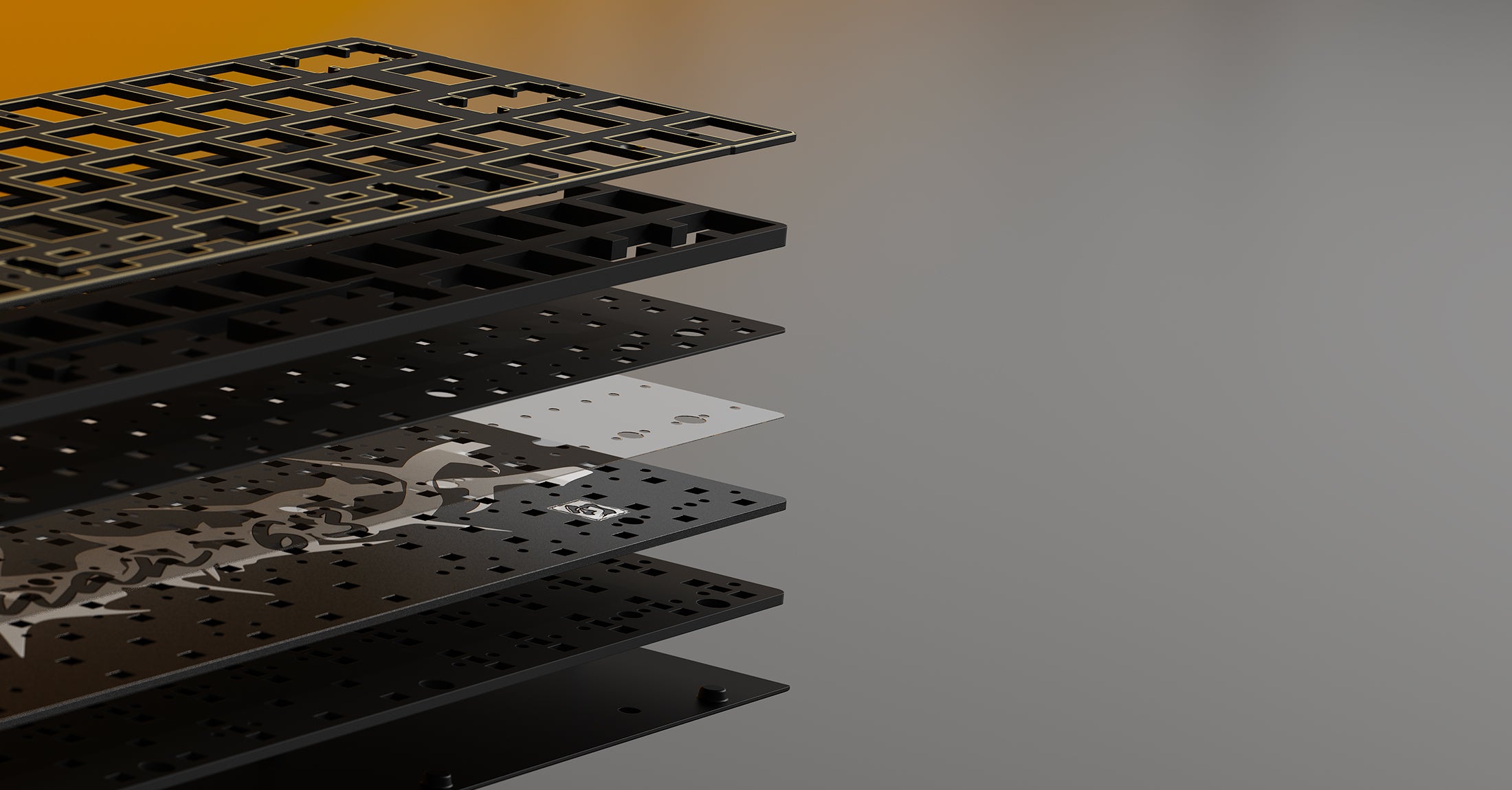

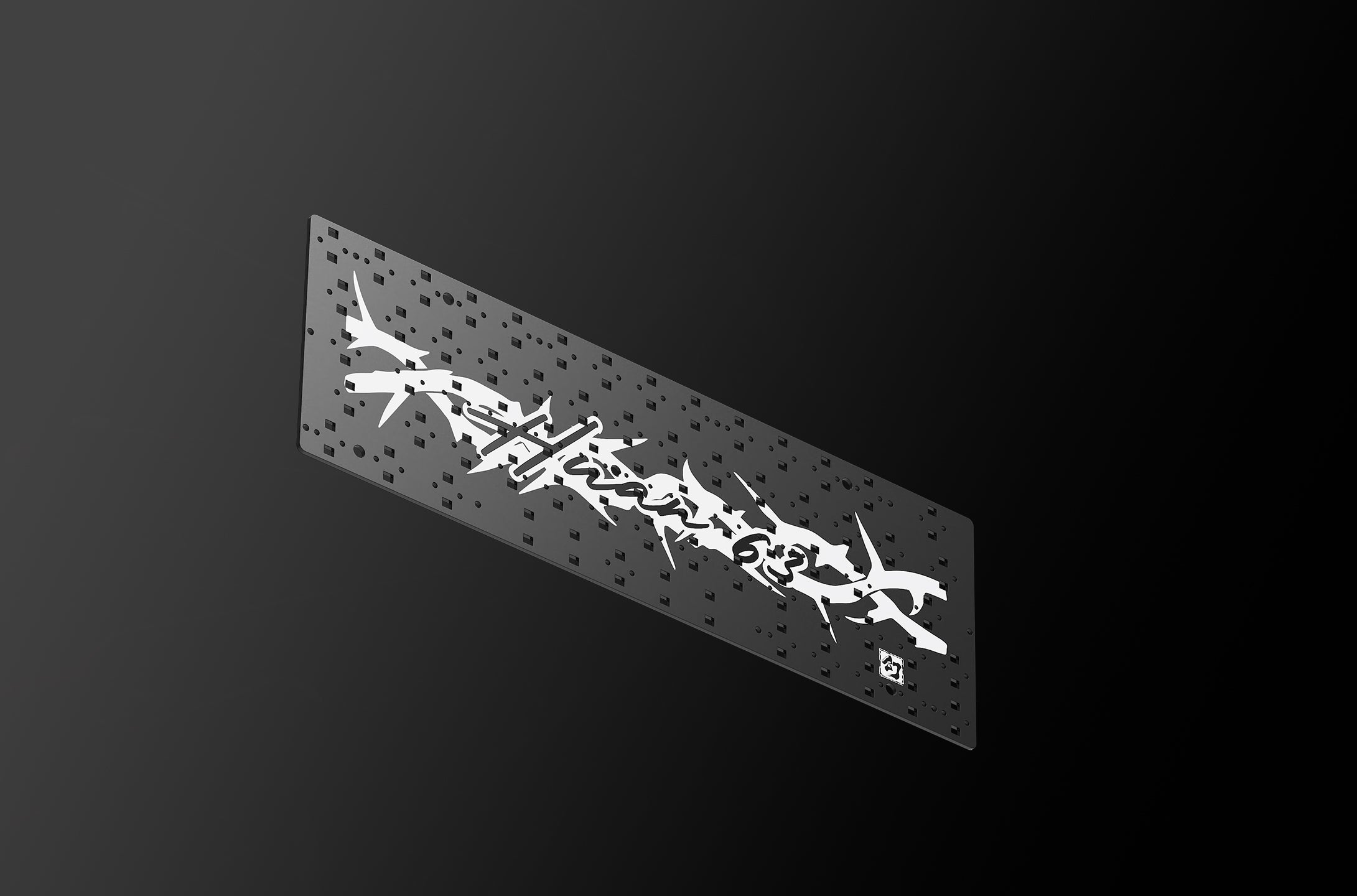

FR4 ENIG Mounting Plate
Crafted from high-quality FR4 with an ENIG finish, this mounting plate offers excellent rigidity, corrosion resistance, and long-term durability. The ENIG coating ensures reliable conductivity and a premium look.

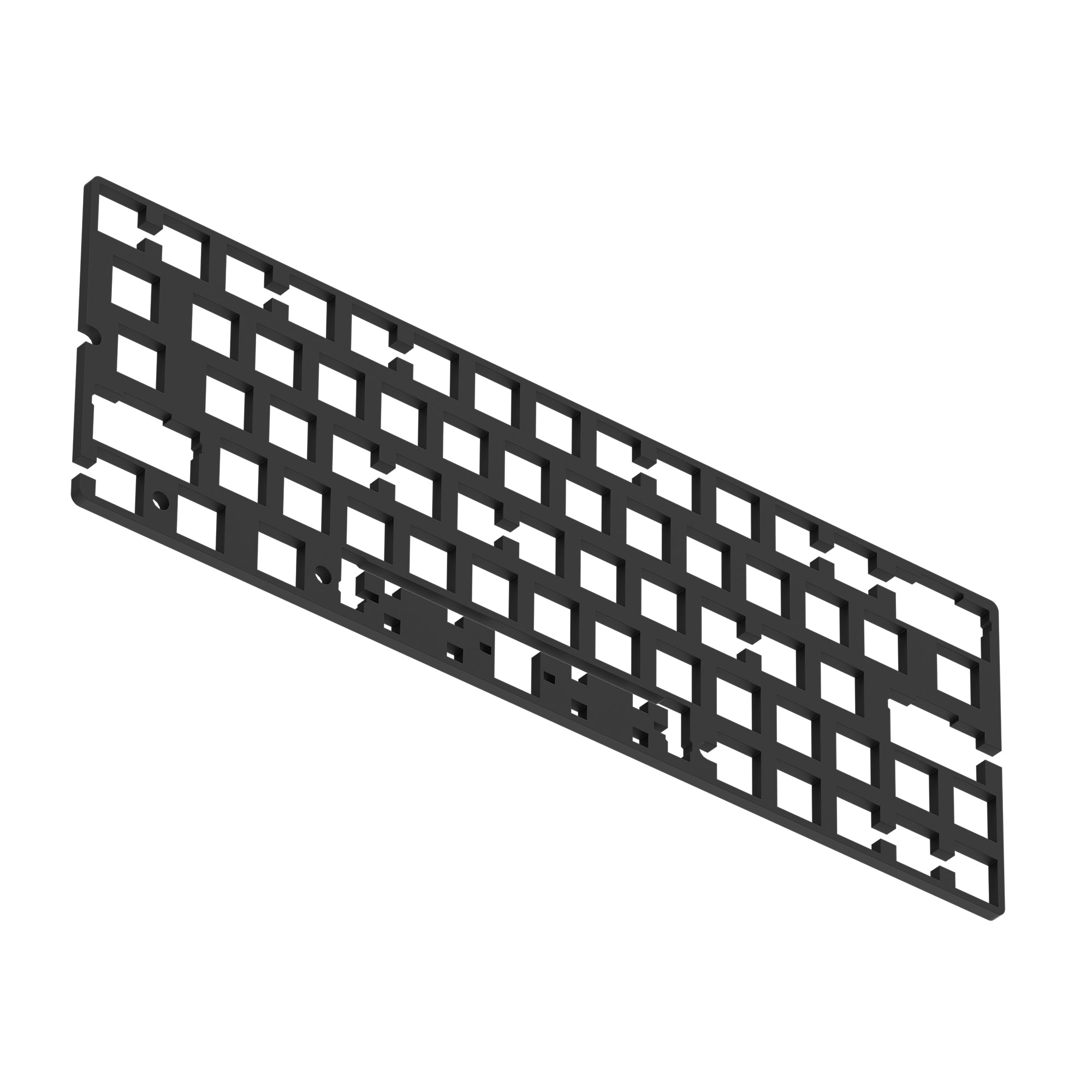

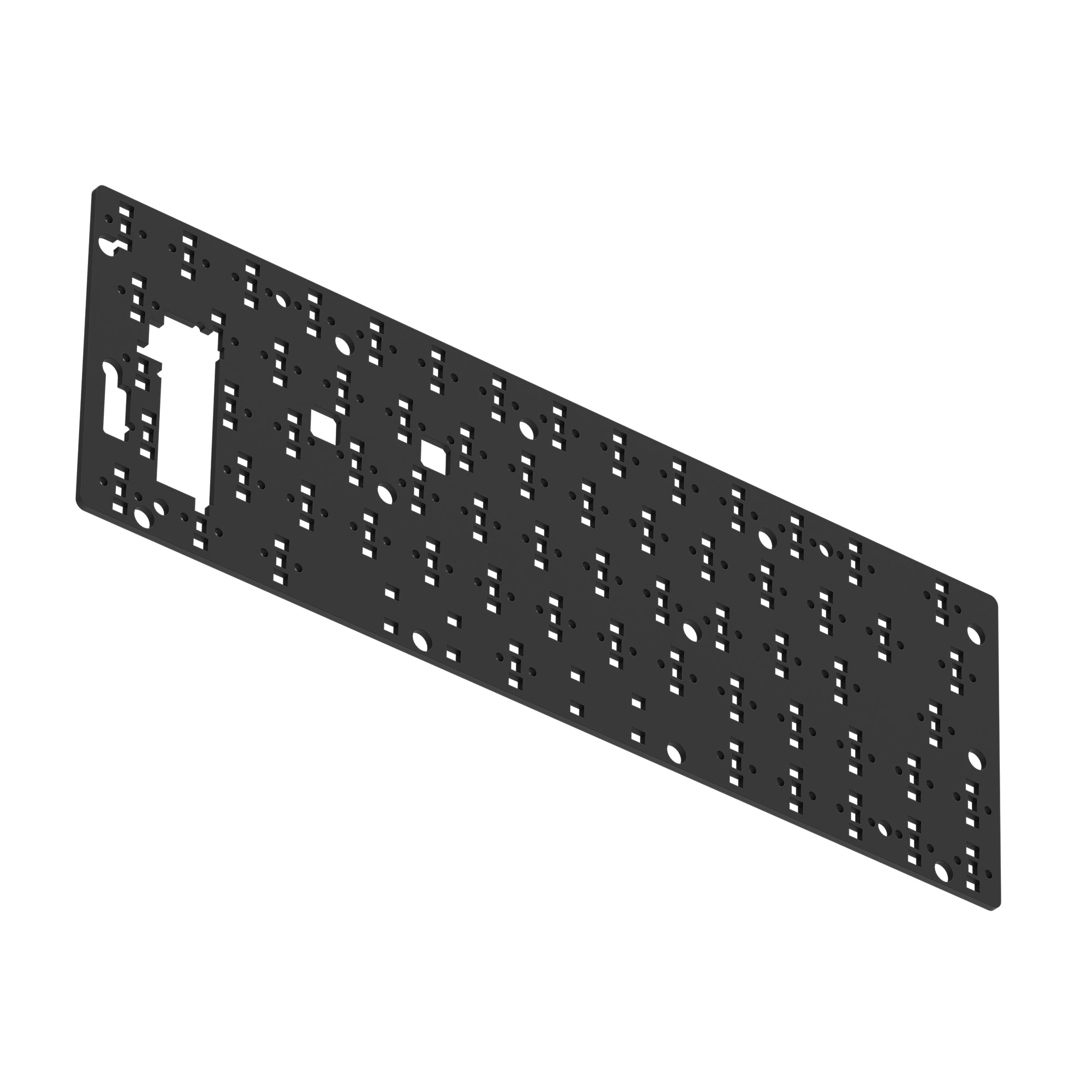

PORON Core Foam
Placed between the plate and PCB, the PORON core layer absorbs micro-vibrations and balances the typing force, creating a smoother, softer feel while maintaining precision.

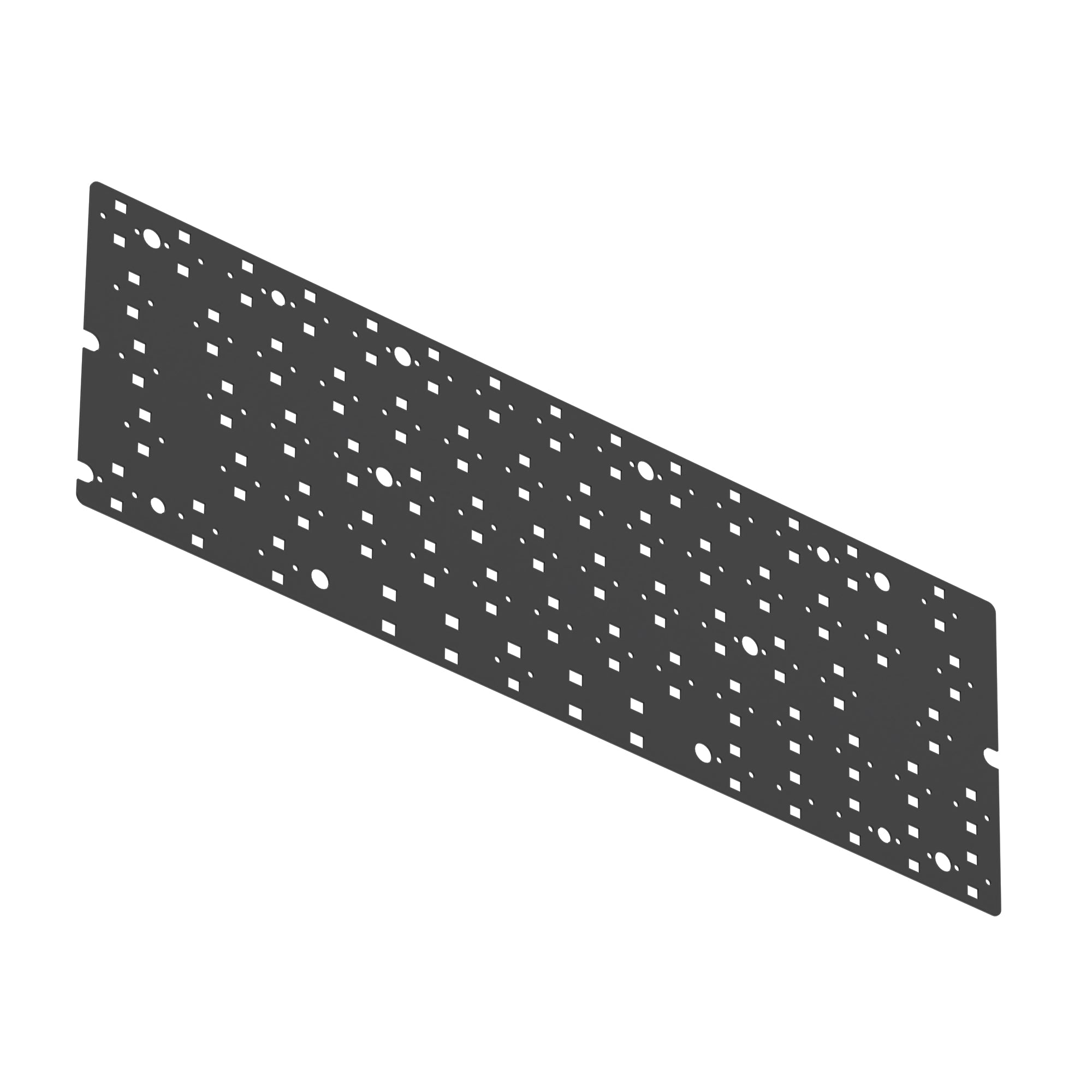

IXPE Switch Pad
Located under each switch, the IXPE pad fine-tunes the acoustic profile by reducing harsh clacks and improving sound uniformity.

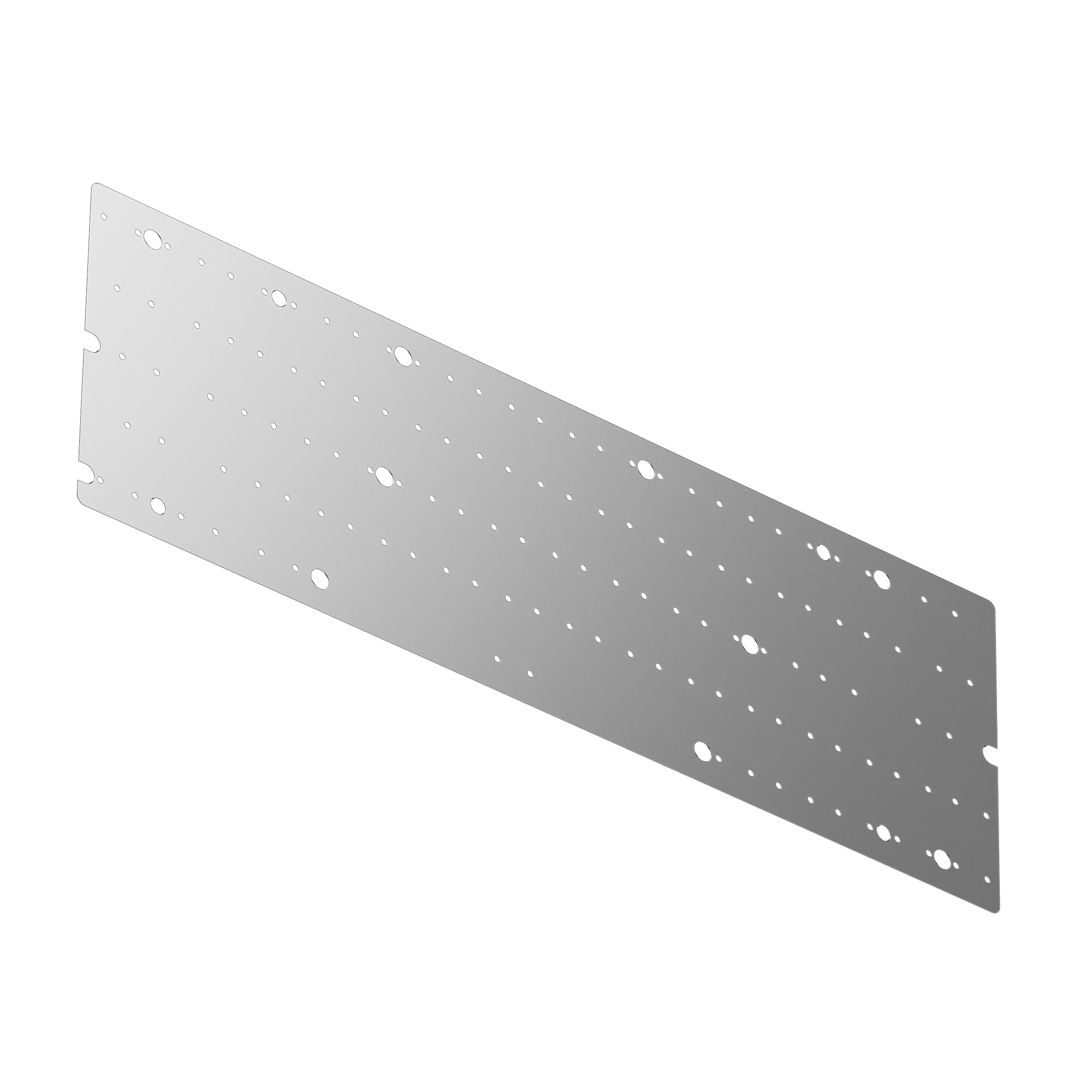

PET Film
Acts as an acoustic barrier and subtle sound reflector, enhancing key response sharpness while reducing hollowness in tone.
PORON Dampening Foam
A dense silicone pad fills the bottom case, further stabilizing the structure and sealing off any hollow reverb for a solid, studio-grade HiFi sound signature.

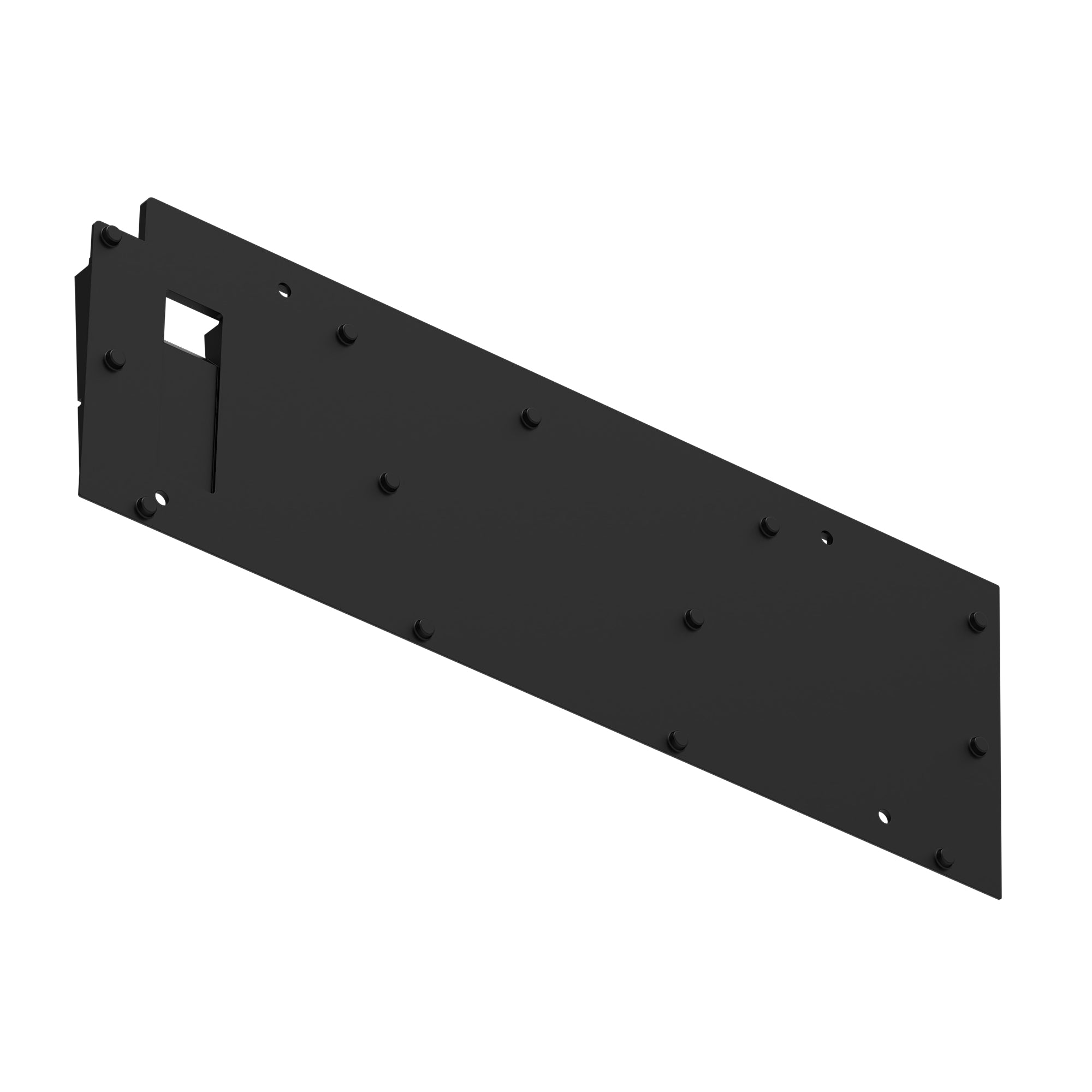

Silicone Base Pad
A dense silicone pad fills the bottom case, further stabilizing the structure and sealing off any hollow reverb for a solid, studio-grade HiFi sound signature.

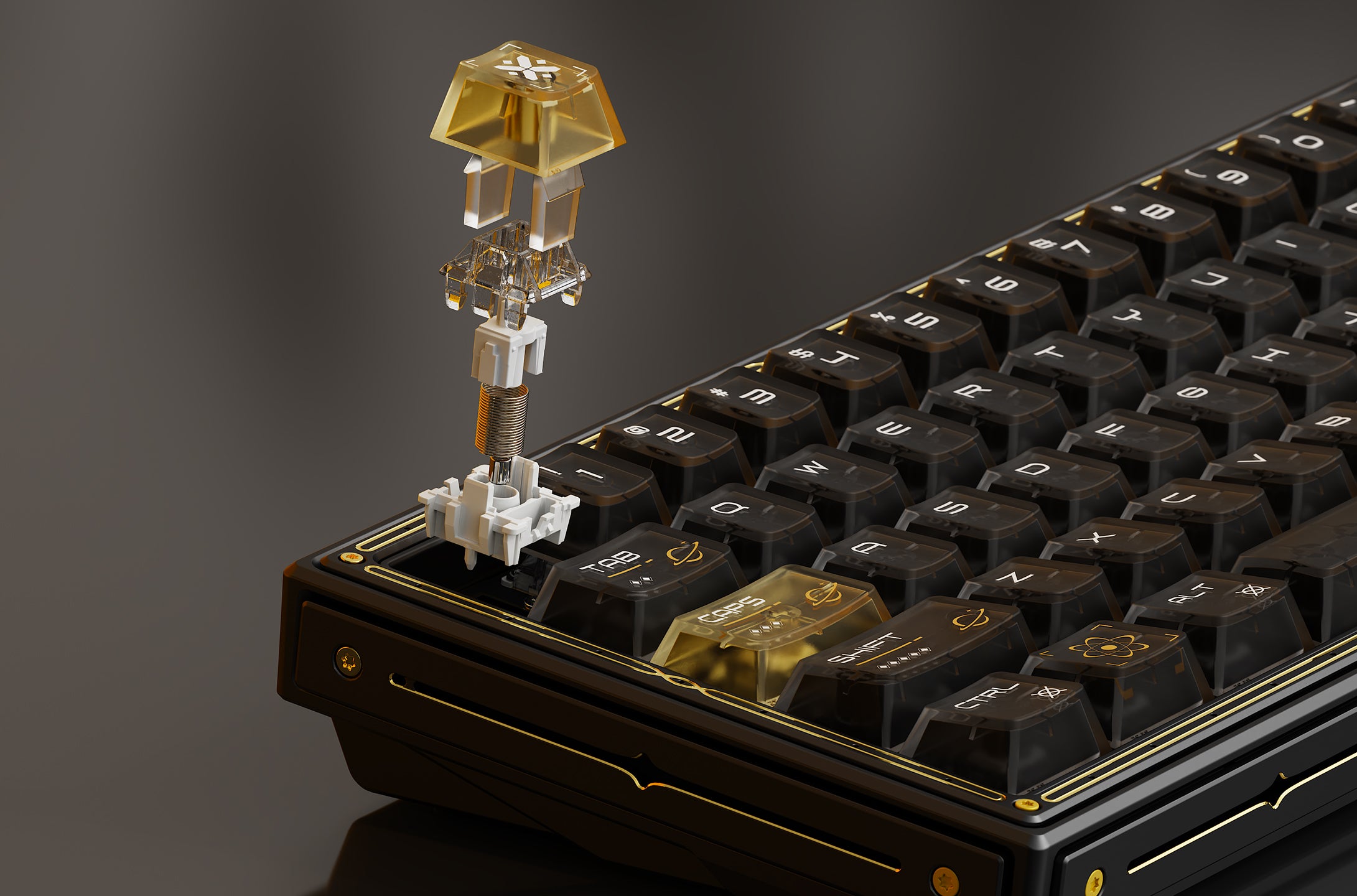

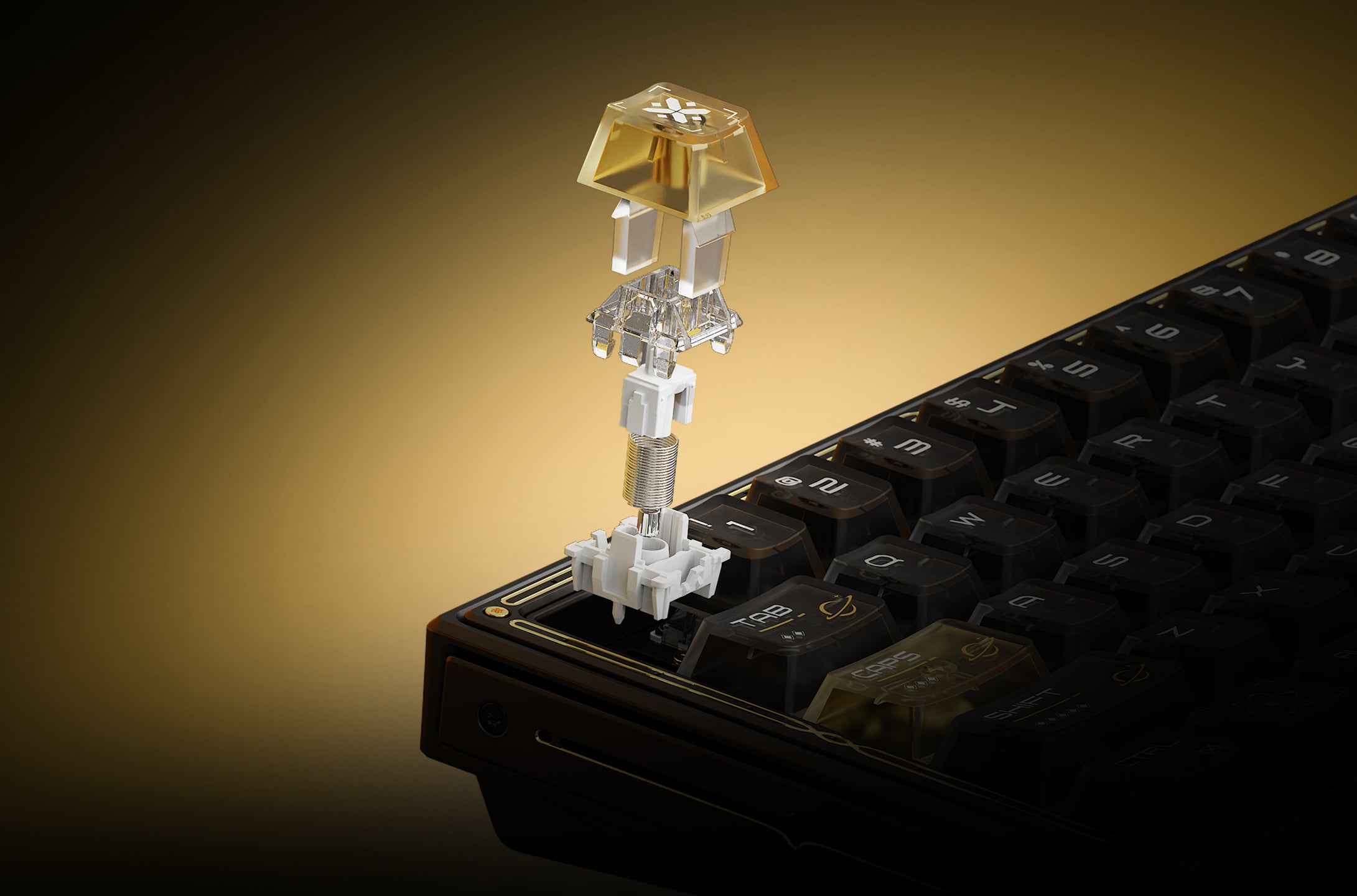

WLMOUSE × Gateron Starlight Switch
Co-engineered with Gateron, the Starlight Magnetic Switch debuts with:
- Dual-light diffusion system
- Magnetic-core instant actuation
- Dual-direction hot-swap design
- Fully customizable key travel and feedback
Enjoy lightning-fast response, soft resilience, and the signature Mahjong-style HiFi sound.
----
- Initial Force: 33±5gf
- Total Travel: 3.5±0.1mm
- Bottom out force:47±10gf
- Initial Magnetic Flux: 120±8GS (PCB1.2mm)
- Bottom-out Magnetic Flux: 700±30GS (PCB1.2mm)
- Pre-Lubed: Yes
- Typing Style: Linear
- Lifetime: 150 million+ cycles
Intelligence at Every Keystroke
Powered by Sparklink 2.0, HUAN learns and adapts to your typing style in real time.
Through precision motion tracking and RT0.001mm compensation, it achieves unrivaled speed and control.
8K Polling + 256K Full-Key Scan
With native 8,000Hz polling rate and 256K key scan matrix, HUAN delivers instant actuation and tournament-grade precision.
Every input is registered faster than you can think.
Command the future — one keystroke ahead.
Nano-Coated PCB Protection
HUAN nano waterproof coating shields the PCB from accidental spills and humidity.
No fear of coffee, sweat, or everyday mishaps — only lasting reliability.

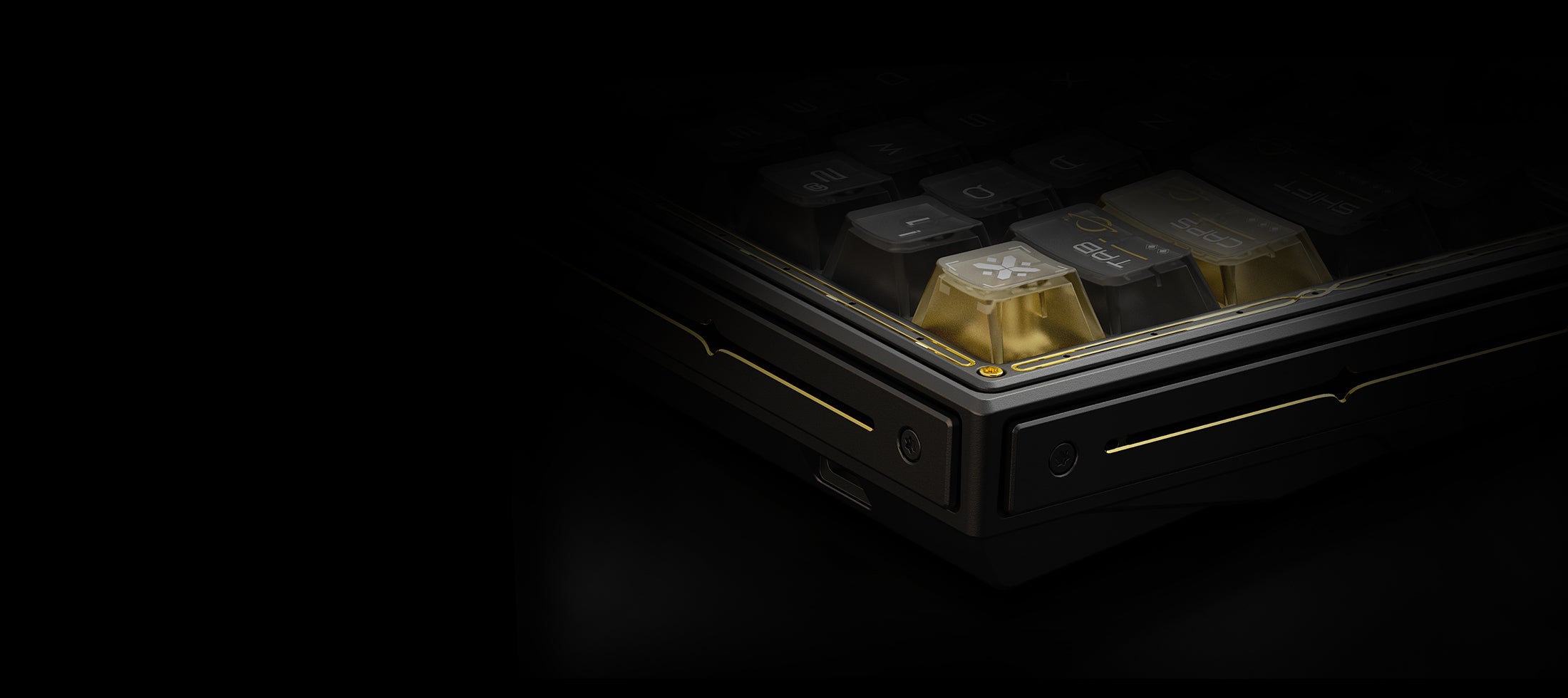

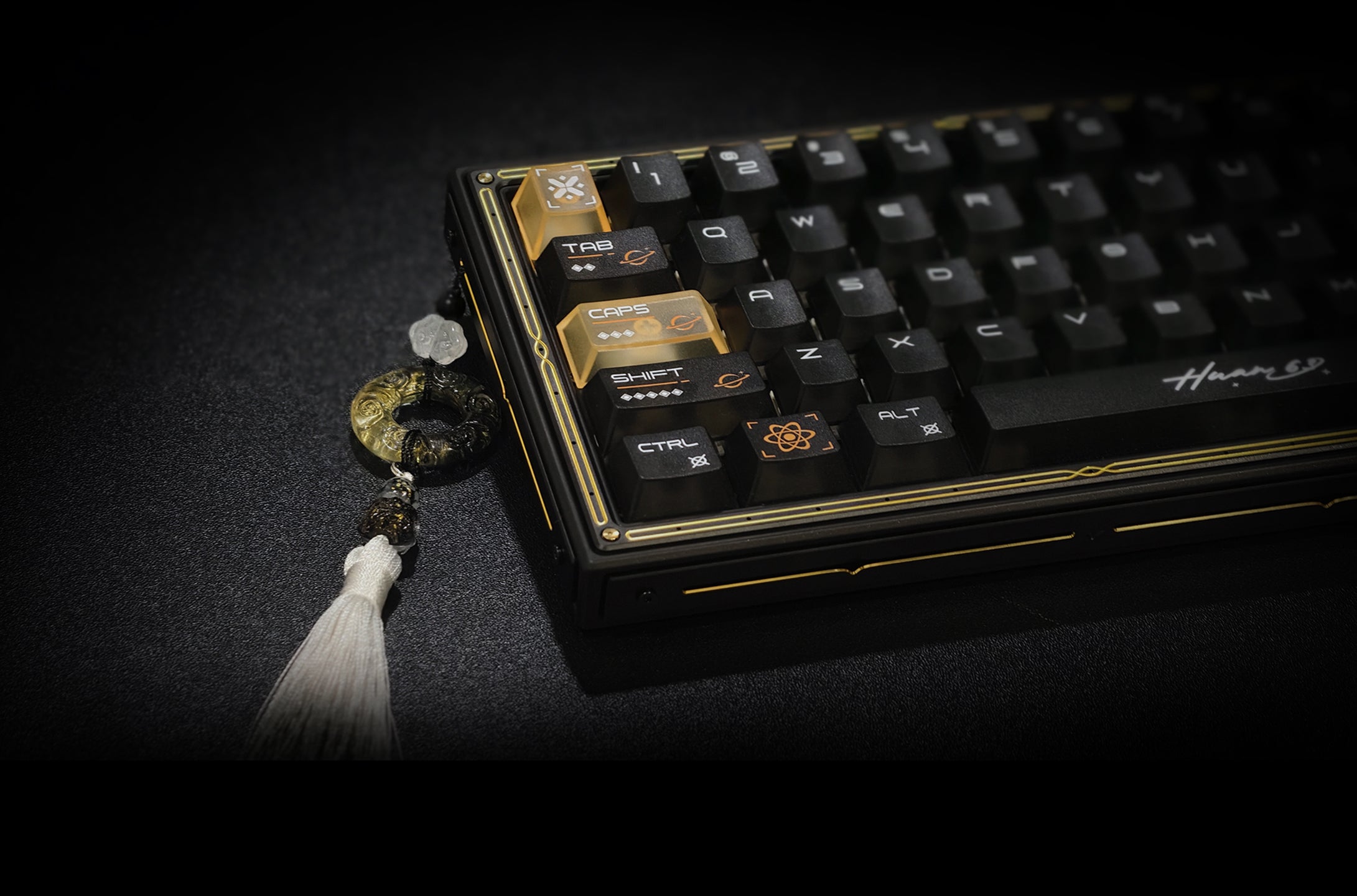

Signature Side Pendant
A delicately crafted metal pendant embedded on the keyboard’s side adds a touch of elegance and personality.
It supports custom charms, team emblems, or limited designs, letting your keyboard carry your identity.
A detail that defines you.
Simpler. Smarter. Stronger.

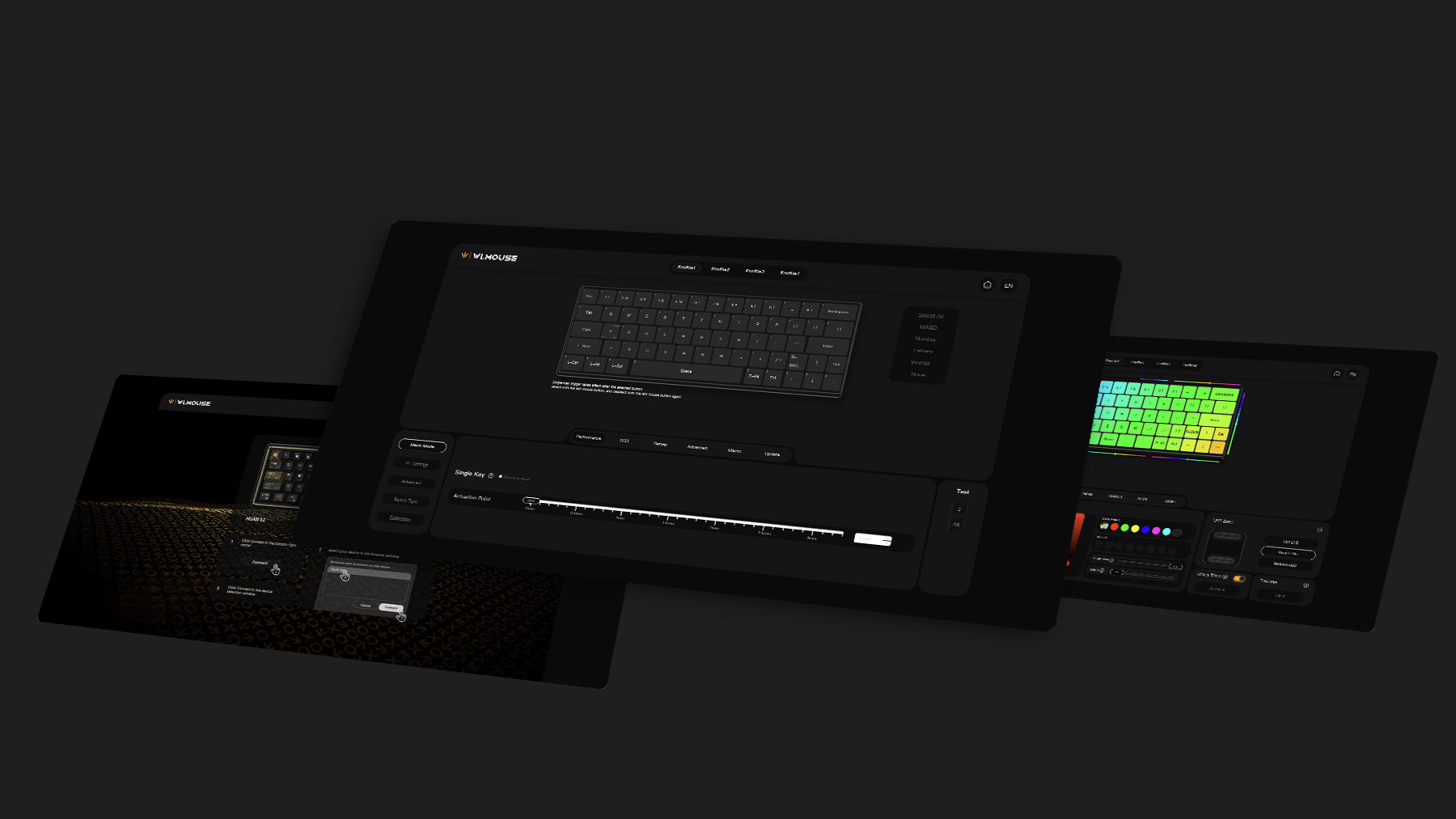

The all-new WLDrive UI brings clean, intuitive control to your fingertips.
Easily configure lighting, remap keys, or tune switch behavior with precision.
Future updates will unlock more gaming features and smart integration.
Powerful customization, made effortless.
